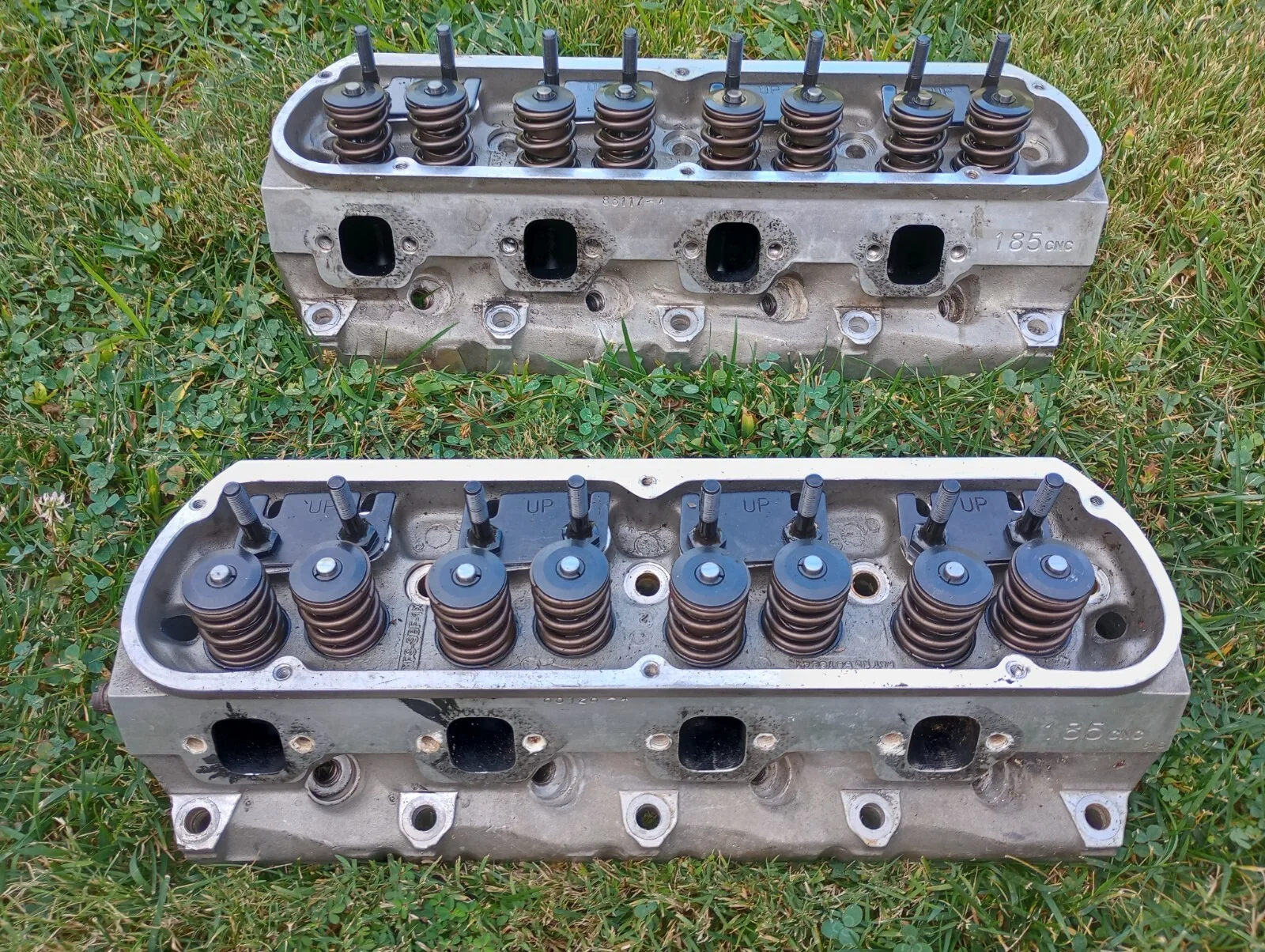

Combustion Chamber Volume (cc):
64

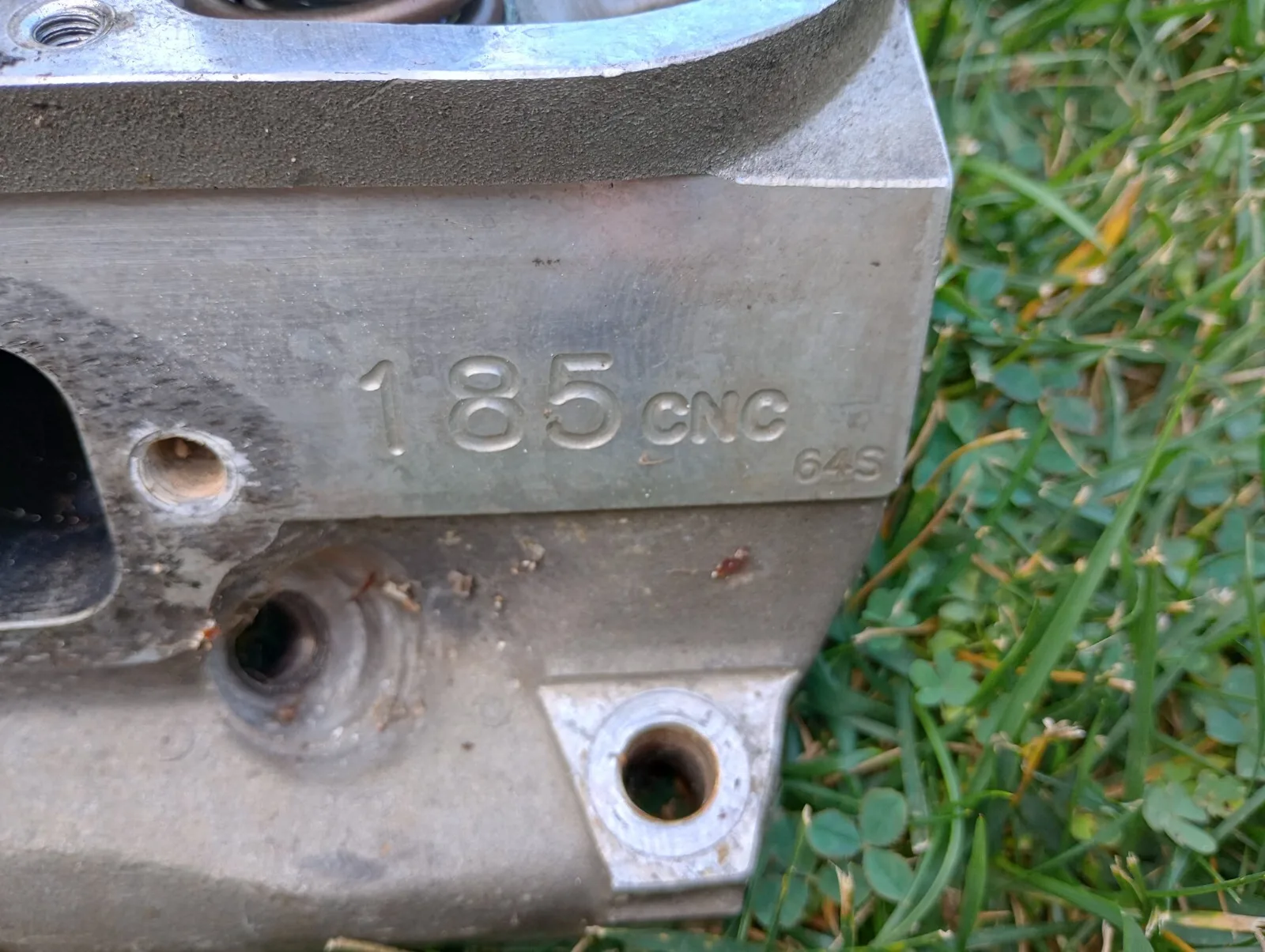

Intake Runner Volume (cc):
185cc
Exhaust Runner Volume (cc):
66cc

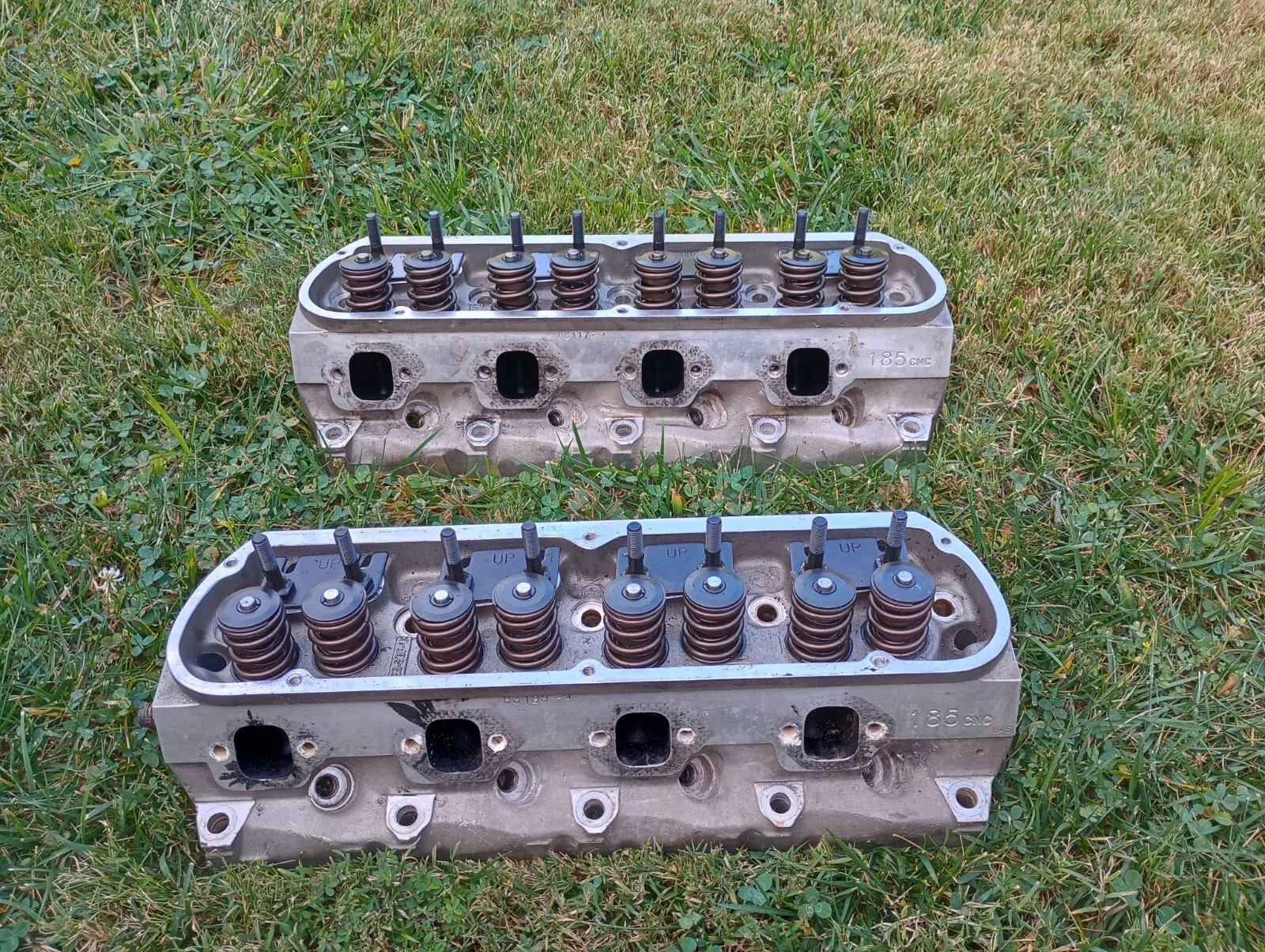

Cylinder Head Style:
Assembled
Cylinder Head Material:
Cast aluminum
Camshaft Style:
Hydraulic roller

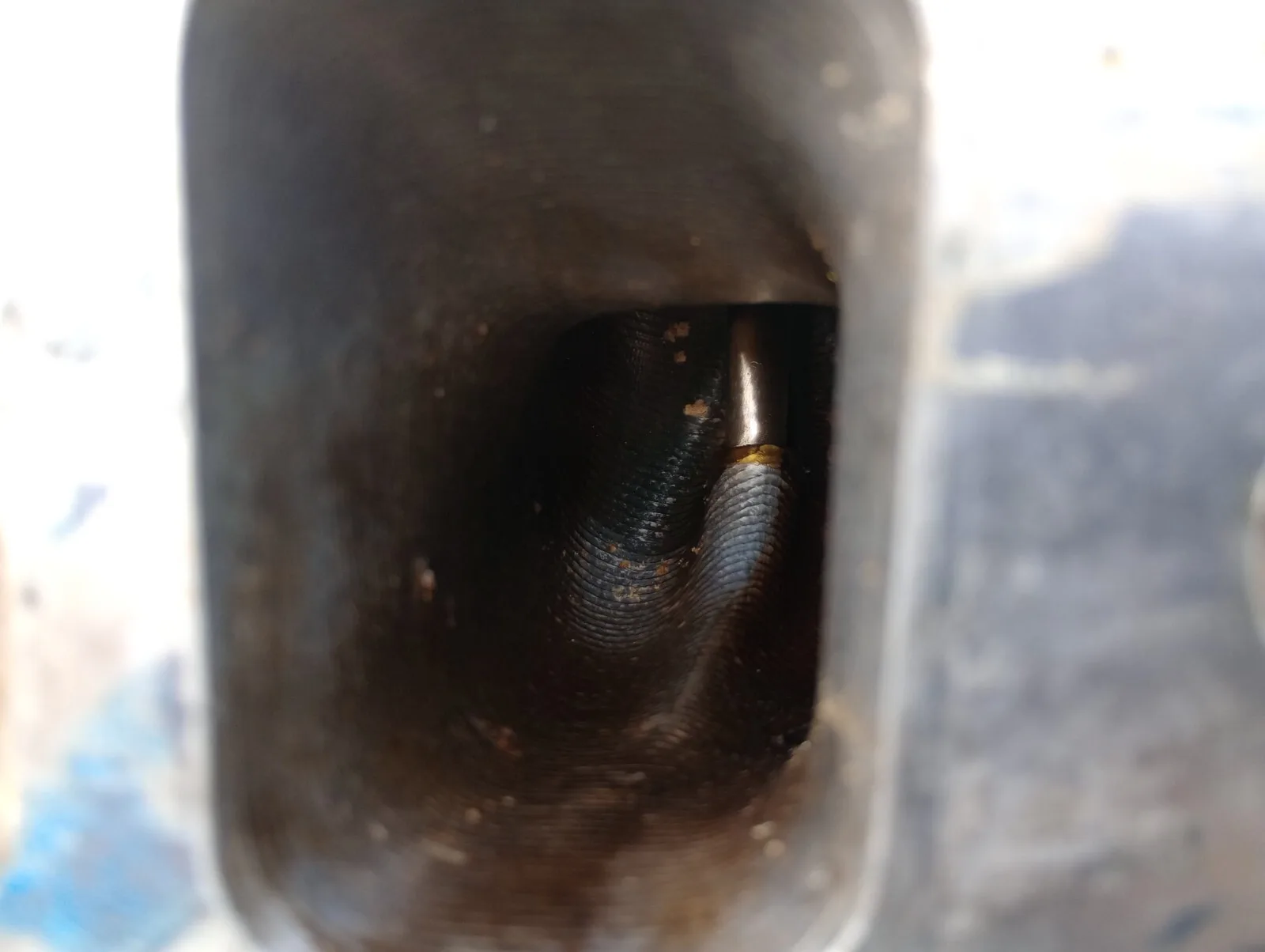

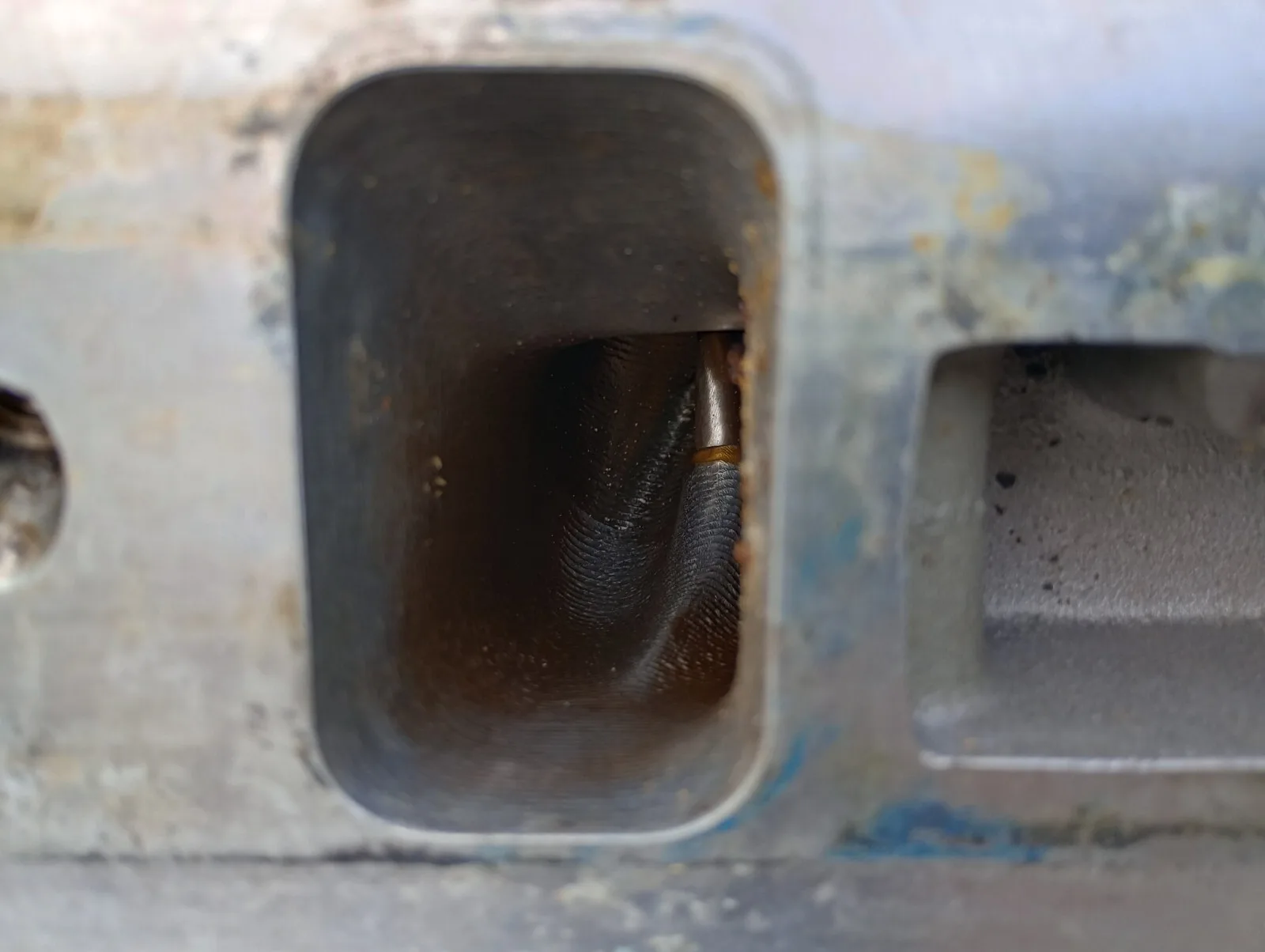

Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.020 in.
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No

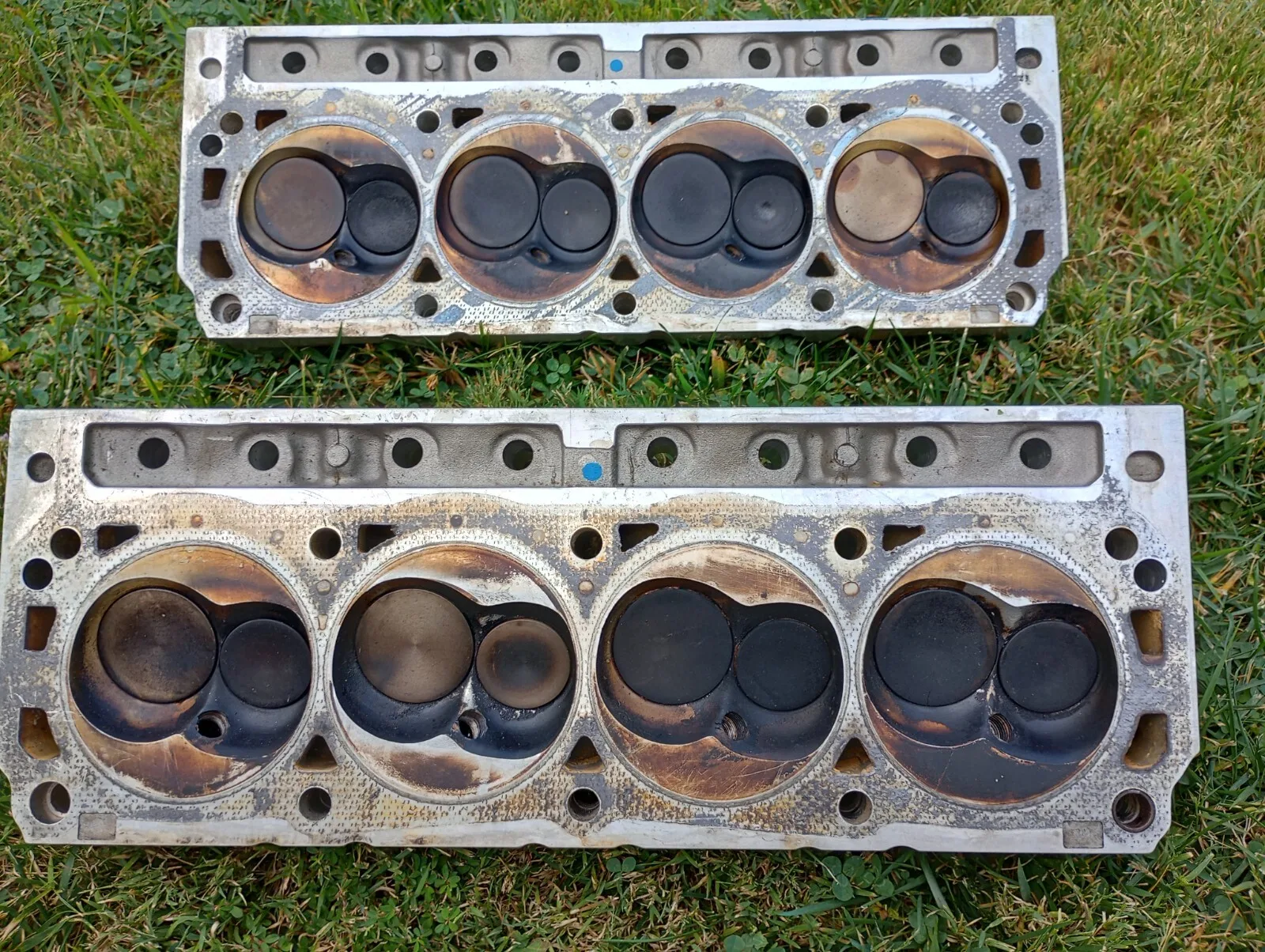

Combustion Chamber Style:
Twisted Wedge®
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.

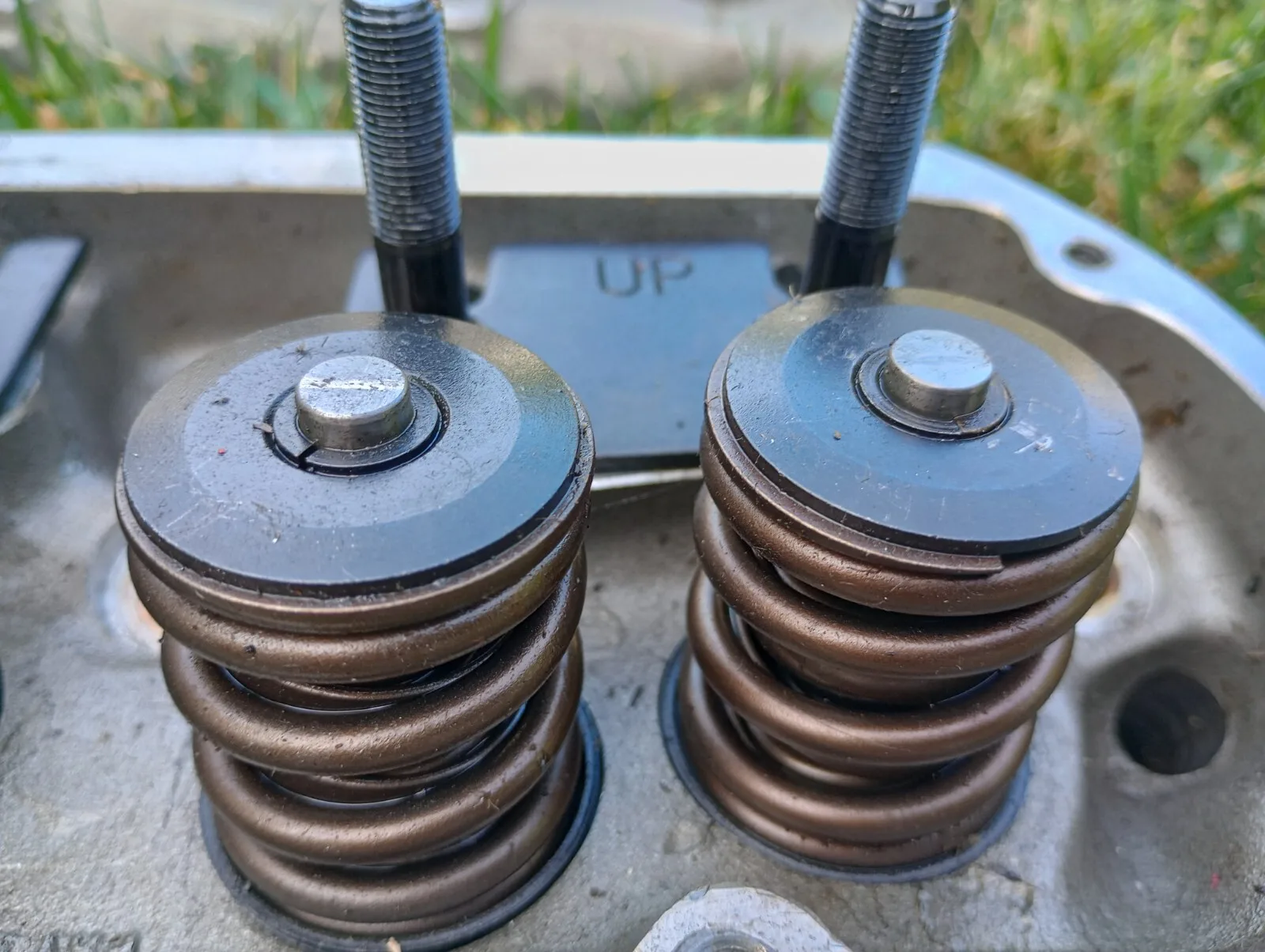

Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Outside Diameter of Outer Spring (in.):
1.460 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly steel
Locks Included:
Yes
Lock Style:
10 degree
Valve Stem Seals Included:
Yes
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
7/16 in.-20
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
15
Exhaust Valve Angle:
17
Valve Guides Included:
Yes
Valve Guide Material:
Bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
