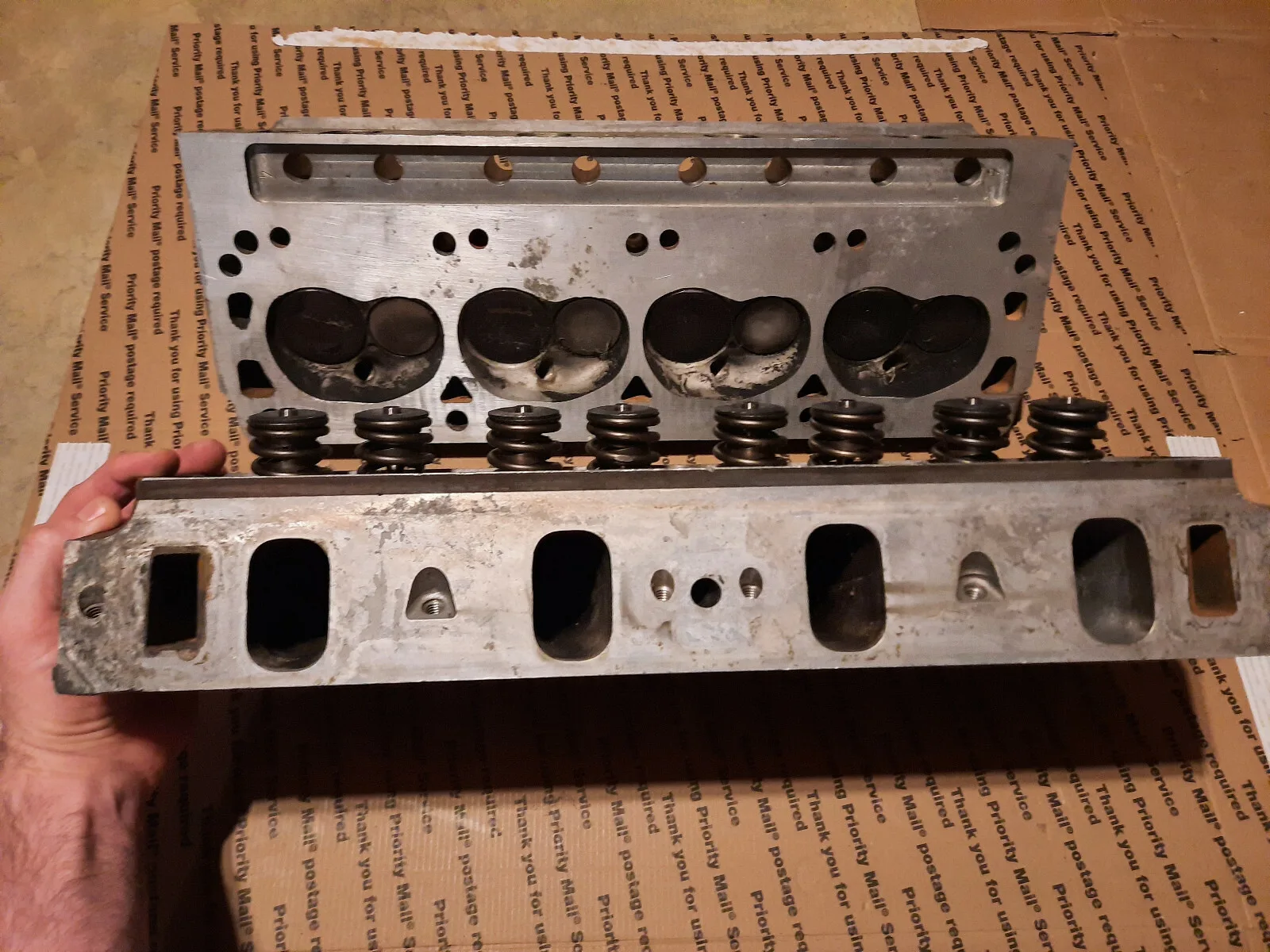

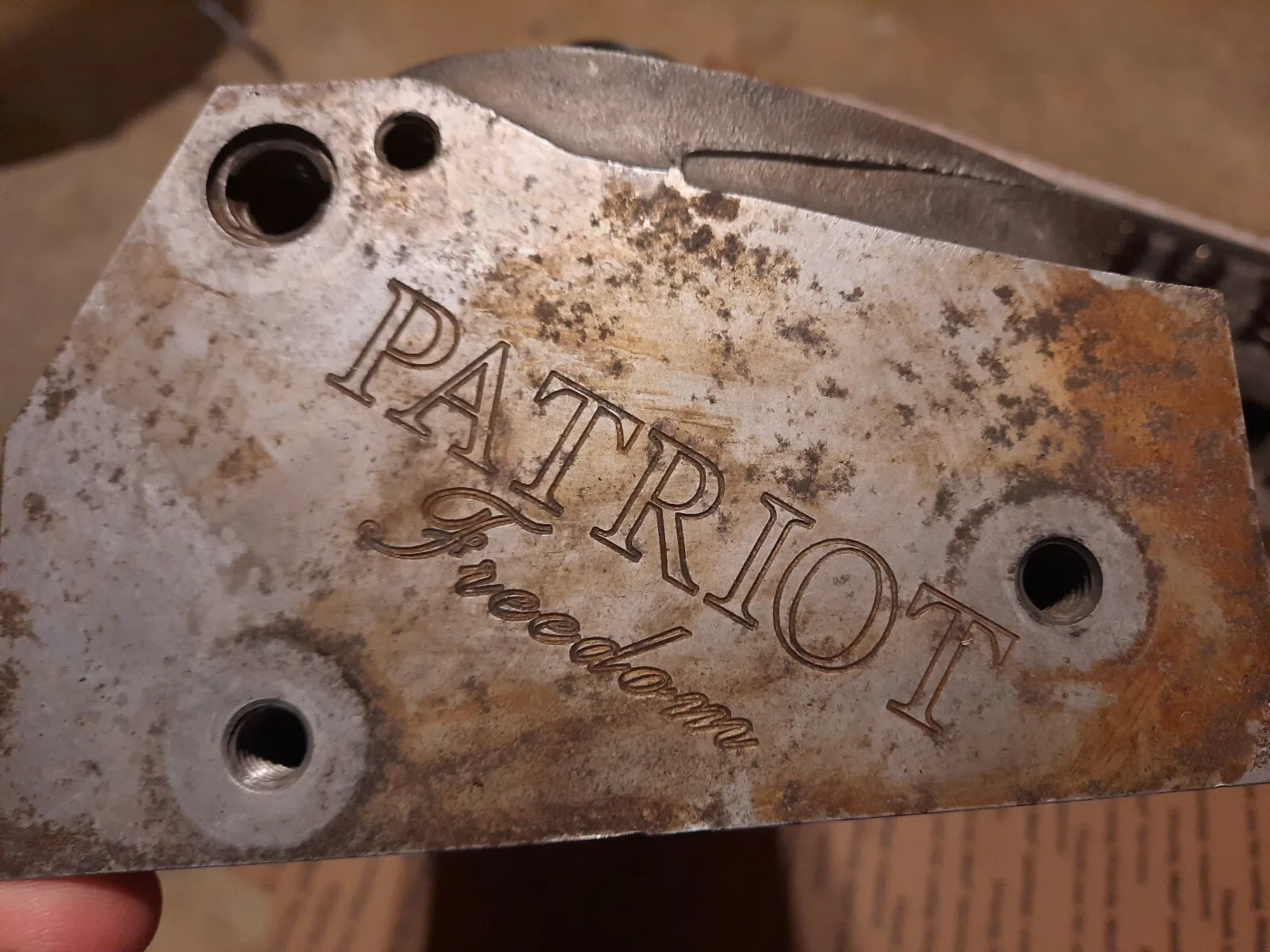

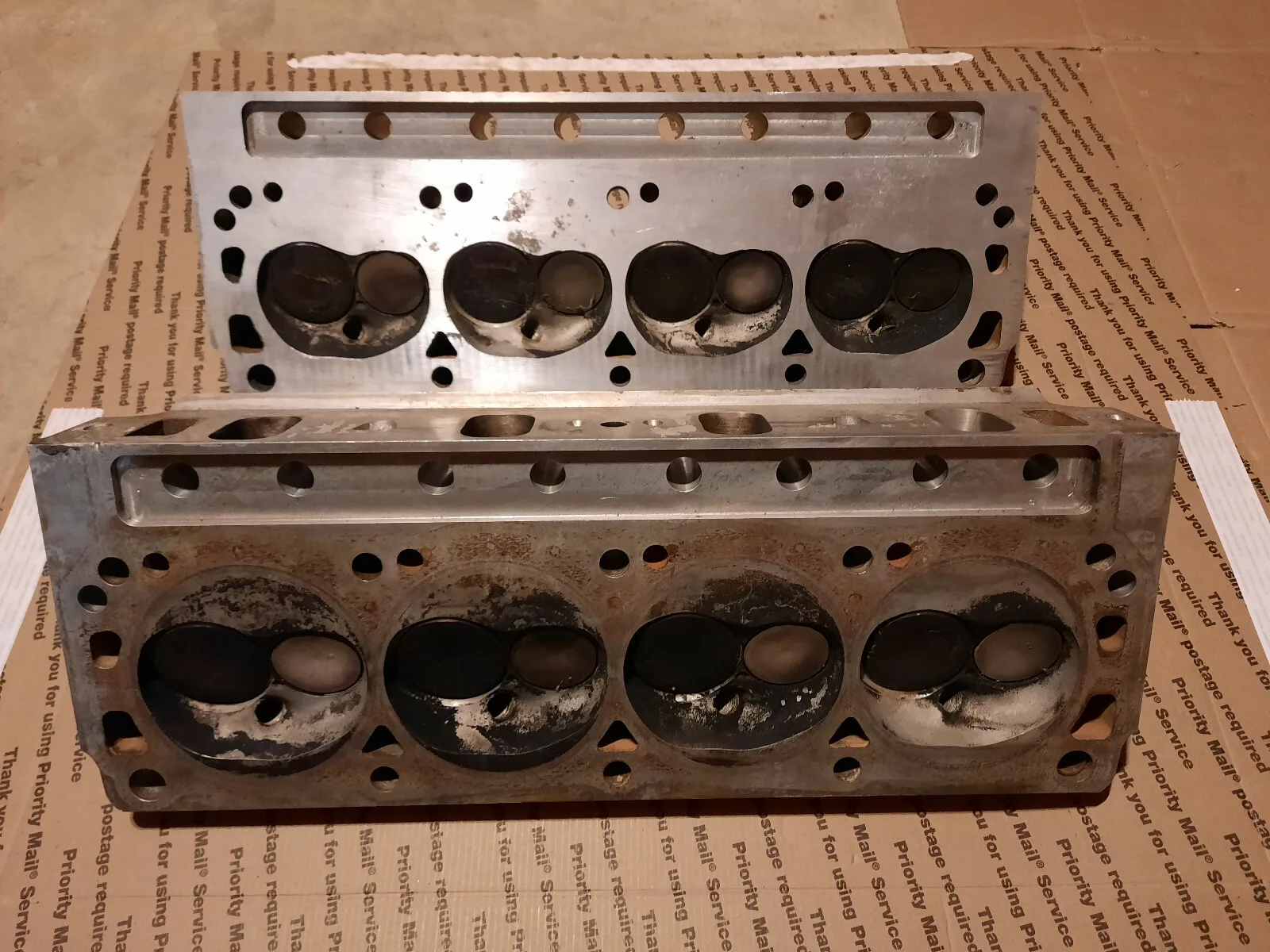

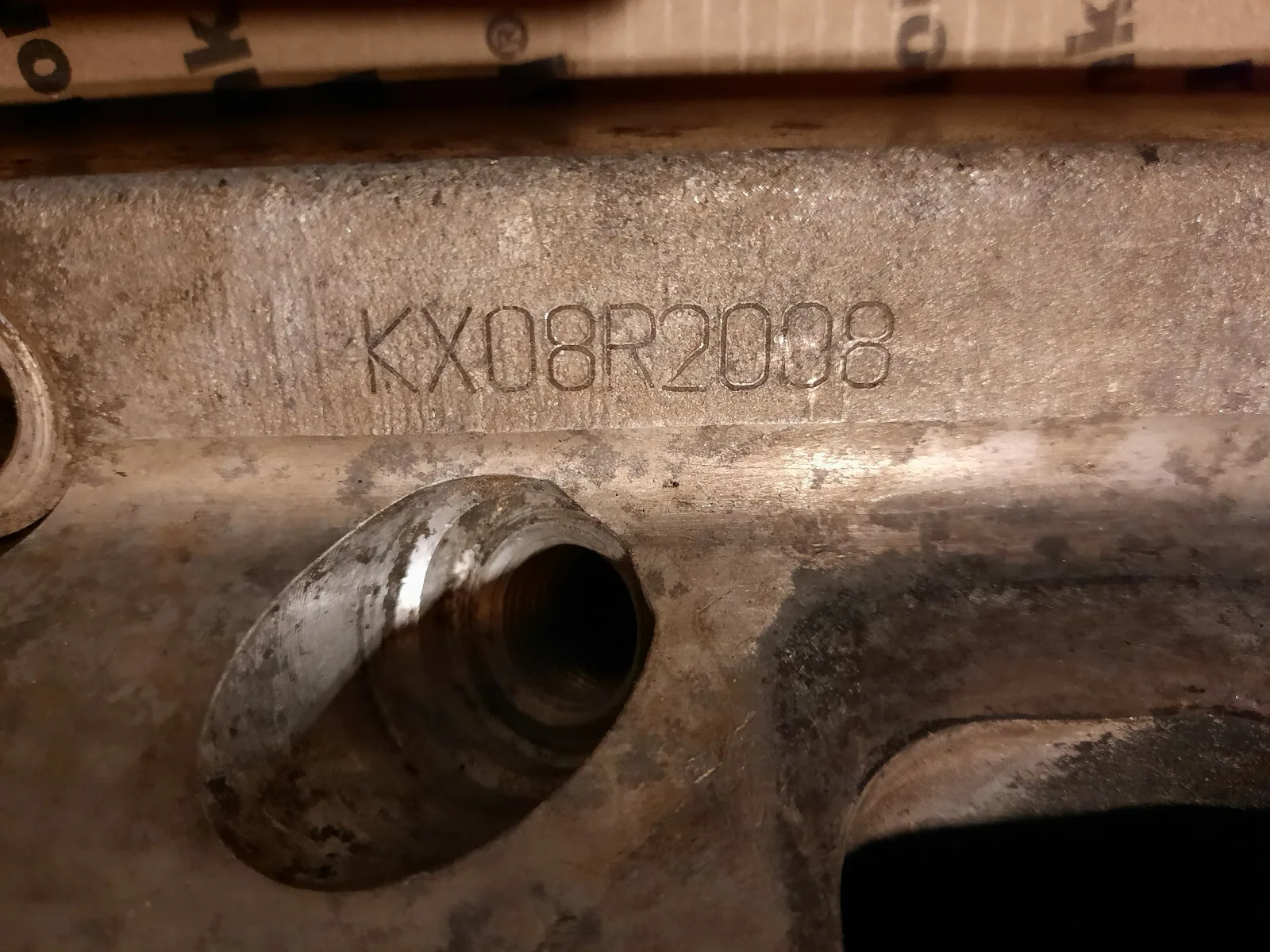

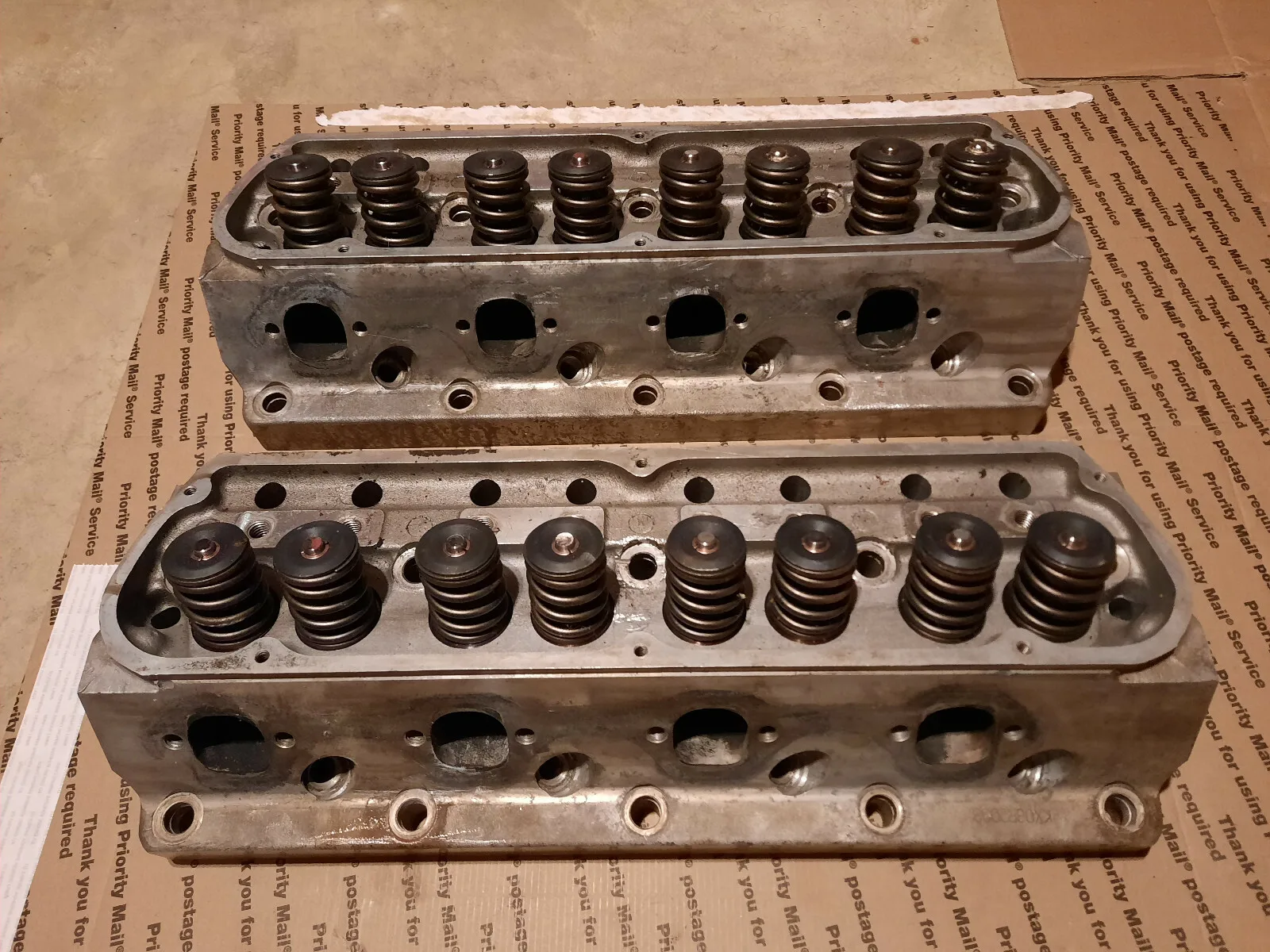

1987-1995 Ford Mustang Patriot Freeedom 5.0L Cylinder Heads 302 COBRA GT40 351W

Brand:

Patriot Performance

Manufacturer’s Part Number:



1102



Part Type:

Cylinder Heads

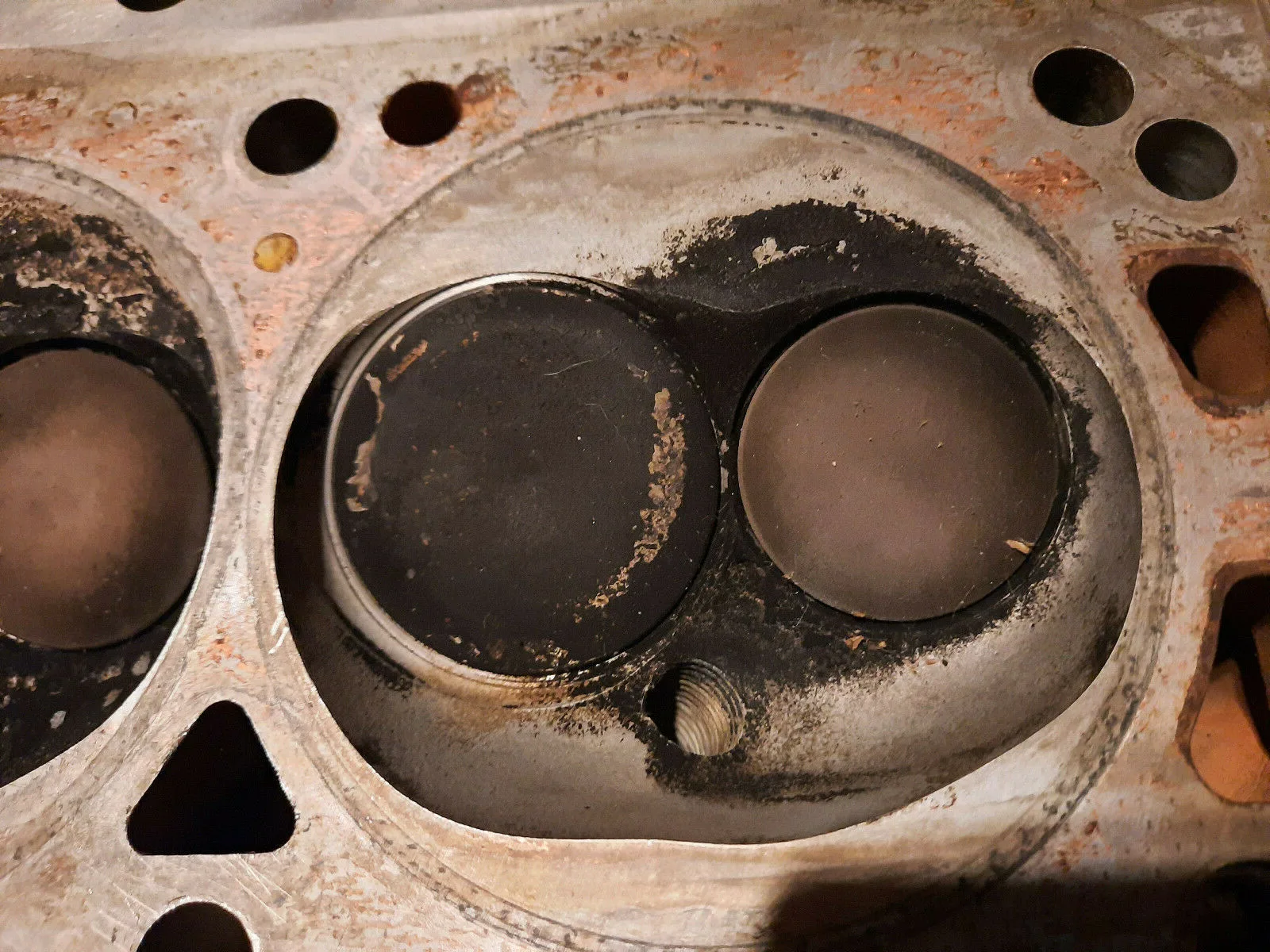

Combustion Chamber Volume (cc):

60



Intake Runner Volume (cc):

185cc



Exhaust Runner Volume (cc):

70cc



Cylinder Head Style:

Assembled



Cylinder Head Material:

Aluminum



Intake Valve Diameter (in):

2.020 in.



Cylinder Head Finish:

Natural



CNC-Machined Combustion Chamber:

No



CNC-Machined Intake Runner:

No



CNC-Machined Exhaust Runner:

No



Intake Port Location:

Standard



Exhaust Port Location:

Standard



Intake Valves Included:

Yes



Exhaust Valves Included:

Yes



Exhaust Valve Diameter (in):

1.600 in.



Valve Springs Included:

Yes



Maximum Valve Lift (in):

0.550 in.



Damper Spring Included:

No



Number of Springs Per Valve:

Single



Retainers Included:

Yes



Retainer Material:

Steel



Locks Included:

Yes



Lock Style:

10 degree



Valve Stem Seals Included:

Yes



Rocker Arm Studs Included:No

Rocker Arm Nut Thread Size:

3/8-24 in.



Rocker Arms Included:

No



Rocker Arm Nuts Included:

No



Guideplates Included:No

Guideplate Pushrod Size:

5/16 in.



Valve Cover Mounting Style:

Perimeter bolt



Accessory Bolt Holes Drilled:

Yes



Valve Guides Included:

Yes



Valve Guide Material:

Manganese bronze



Valve Seats Machined:

Yes



Valve Seat Machine Style:

5-angle



Valve Seat Material:

Steel



Steam Holes Drilled:

No



Oiling Style:

Through pushrod



Machined for O-Ring:

No



Heat Crossover:

No



Notes:

Drilled for 1/2 in. head bolts. Valve springs are
set-up for max valve spring Lift of 0.550 in. for hydraulic roller cam.
