Vortech Universal Chevrolet Small Block Carbureted Supercharger 302 350 SBC 5.7

New in box

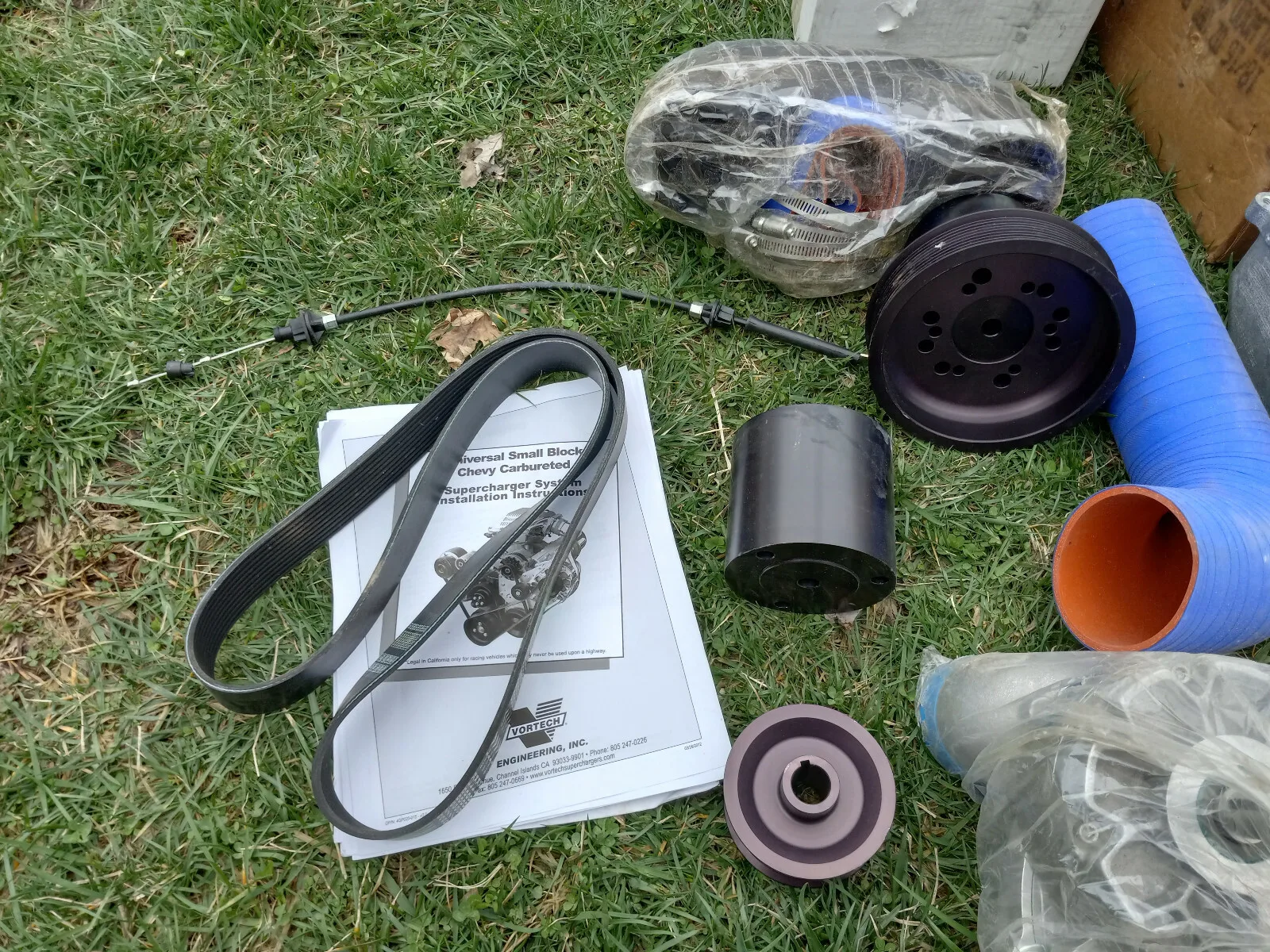

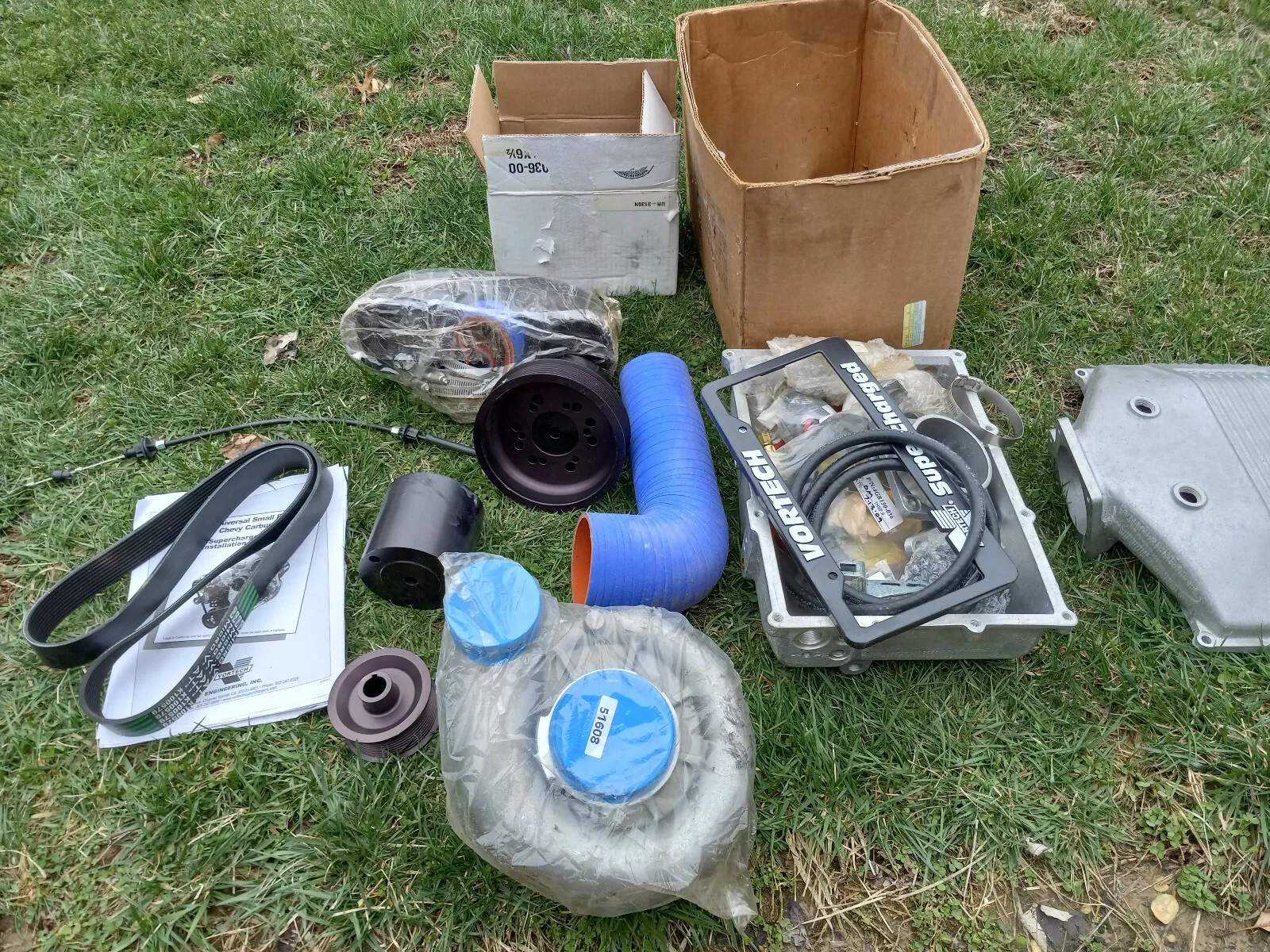

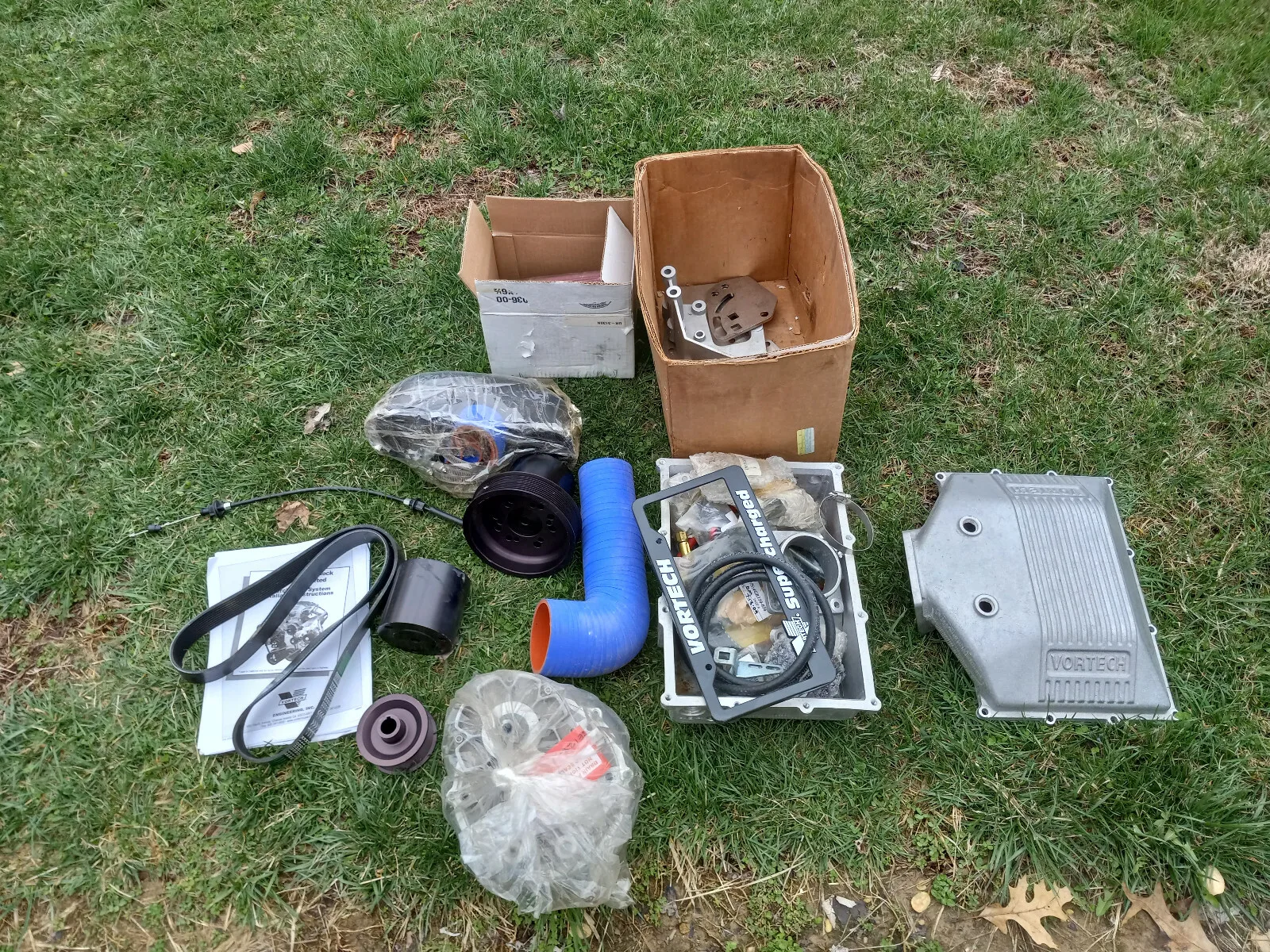

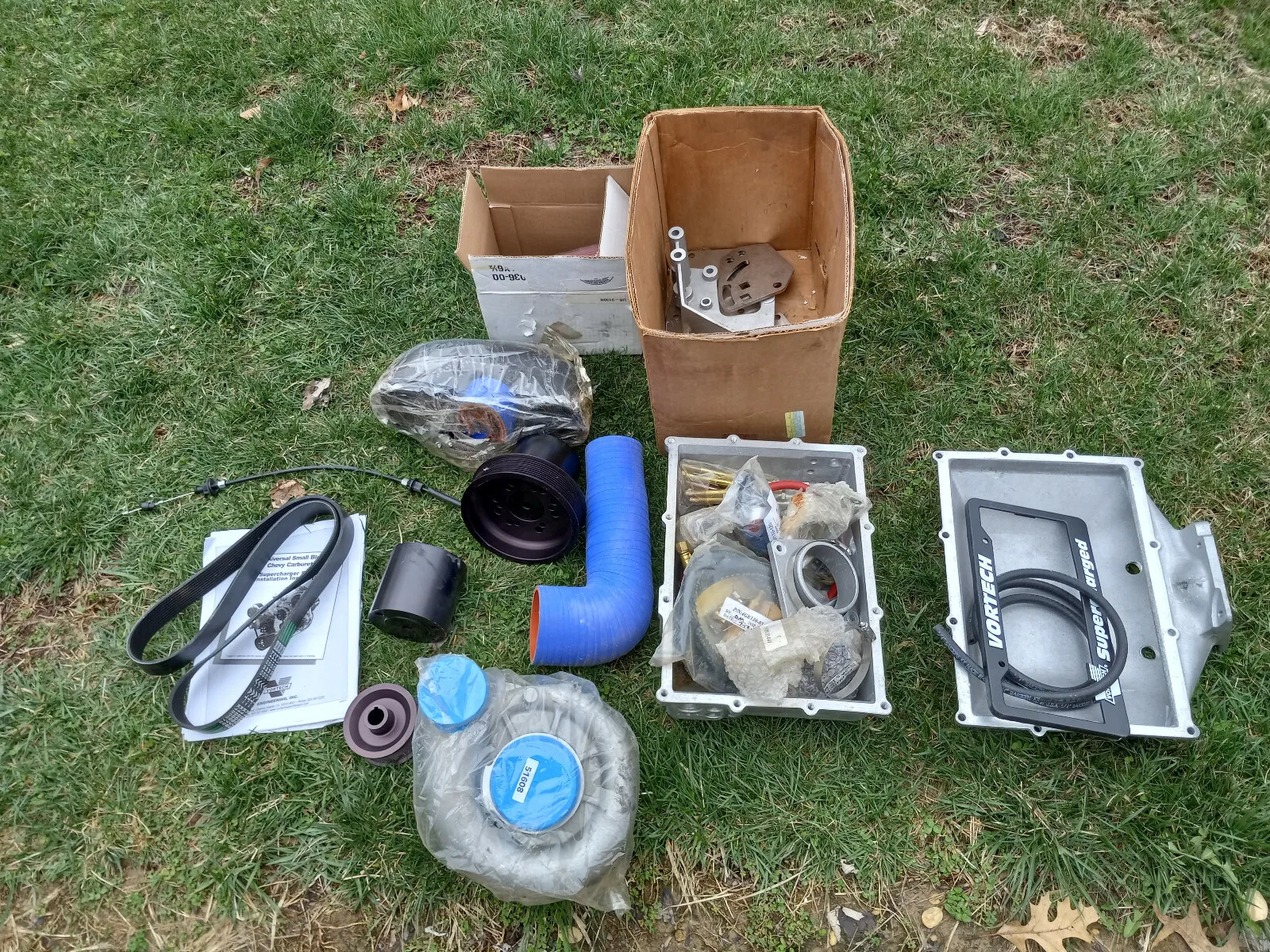

Vortech Universal Chevrolet Small Block Carbureted Supercharger 302 350 SBC 5.7
Part # 4GP218-030SQ
Product Details

  • This is a revised “universal” supercharging system designed for
    vehicles equipped with carbureted small block Chevrolet engines.
    Horsepower gains depend on boost levels, engine efficiency, etc., but
    can range from 30-75%. It offers improved application flexibility,
    increased supercharger mount rigidity, and simple integration with
    existing OEM drive configurations. Installation time will also vary
    depending on application, but can range from 4-10 hours. This system has
    been verified to fit on 1970-1973 Camaro/Firebird (w/cowl hood),
    1964-1972 Chevelle and 1955-1957 Sedan (BelAir/210 etc.) and 1968-1973
    Nova/Chevy II.

  • These systems are available with several supercharger head units, to
    meet with whatever your ultimate power goals may be. The V-2 Si
    features a helical gear set and will support applications up to 775HP.
    The V-1 Ti Supercharger features a heavy-duty, straight-cut gear set and
    will support applications up to 950HP. The V-7 YSi features a heavy
    duty gear set and will support applications up to 1,200HP. For
    applications beyond 1,200HP, please contact the Vortech Sales Department
    for appropriate compressor matching.

    • Features:

    • Horsepower gains, depending on boost levels, engine volumetric efficiency and other factors, range from 30% to more than 75%.

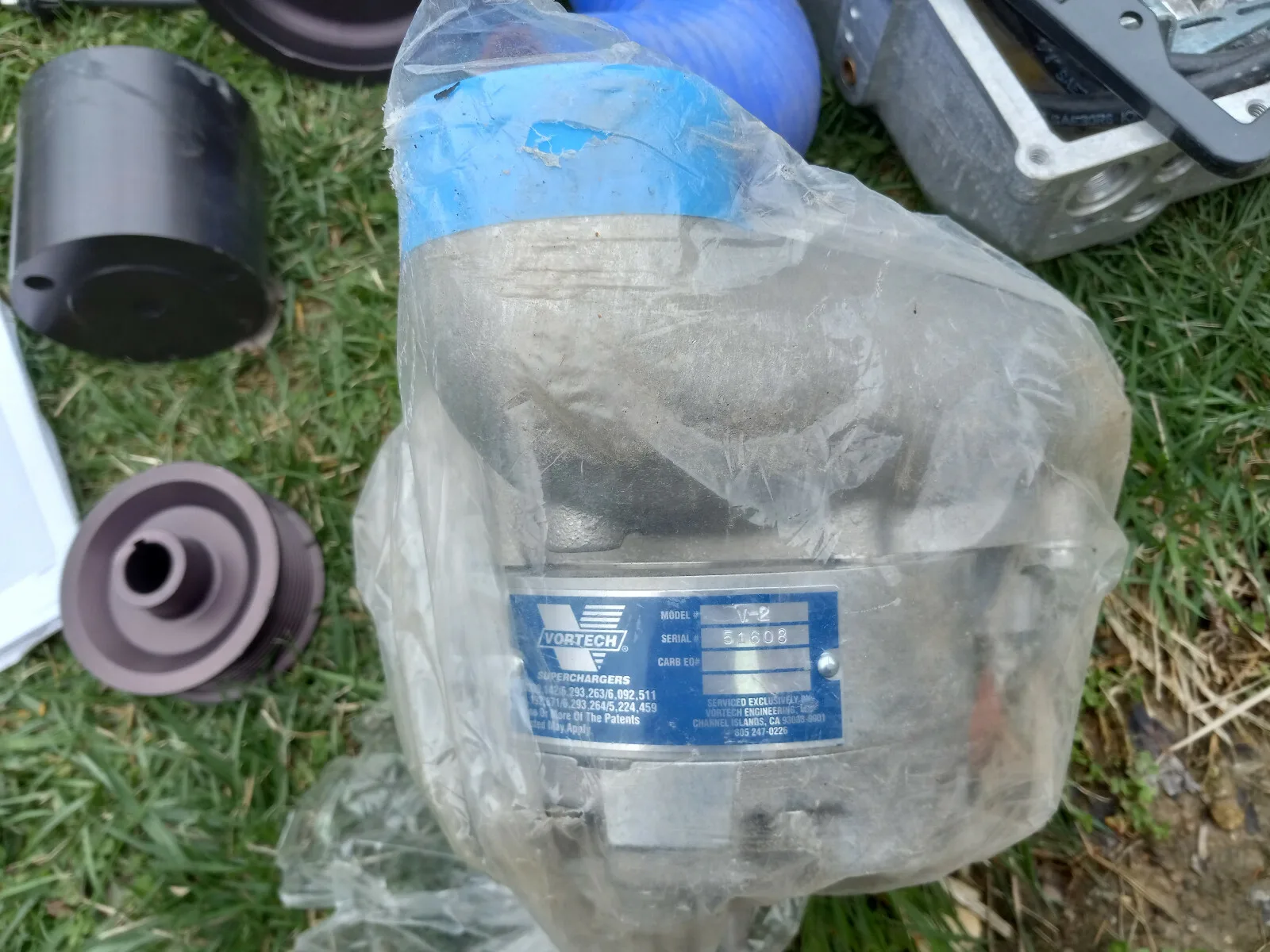

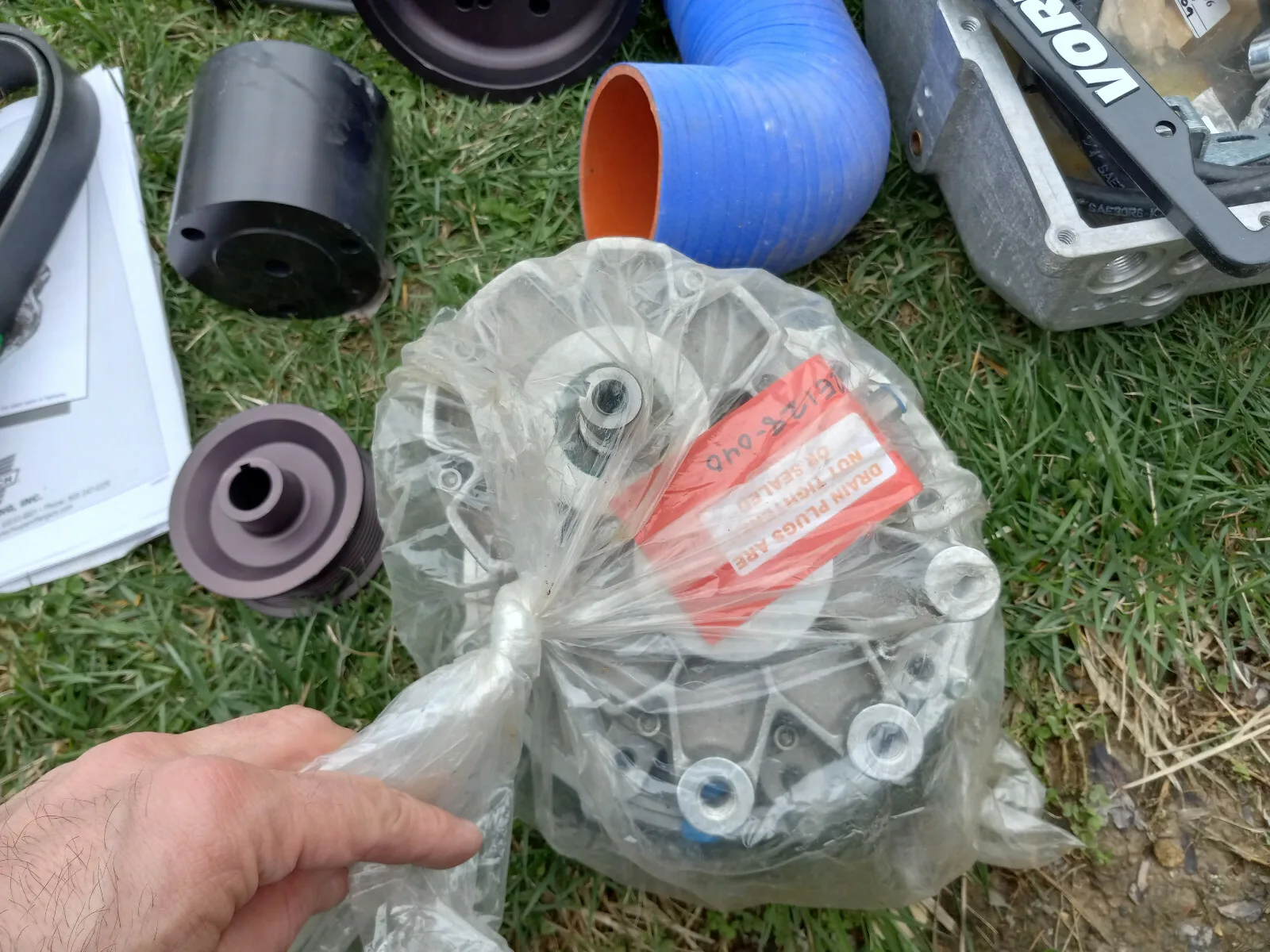

    • Vortech gear driven supercharger for unmatched reliability.

    •
    Supplied Belt/Pulley ratio will produce approximately 8-10 psi at 5500
    rpm on a mildly modified 350 cubic inch motor (S-Trim systems)

    •
    Technologically advanced, high-efficiency impeller and housing design
    developed in Vortech’s supercharger test cell to meet SAE J1723
    Standard.

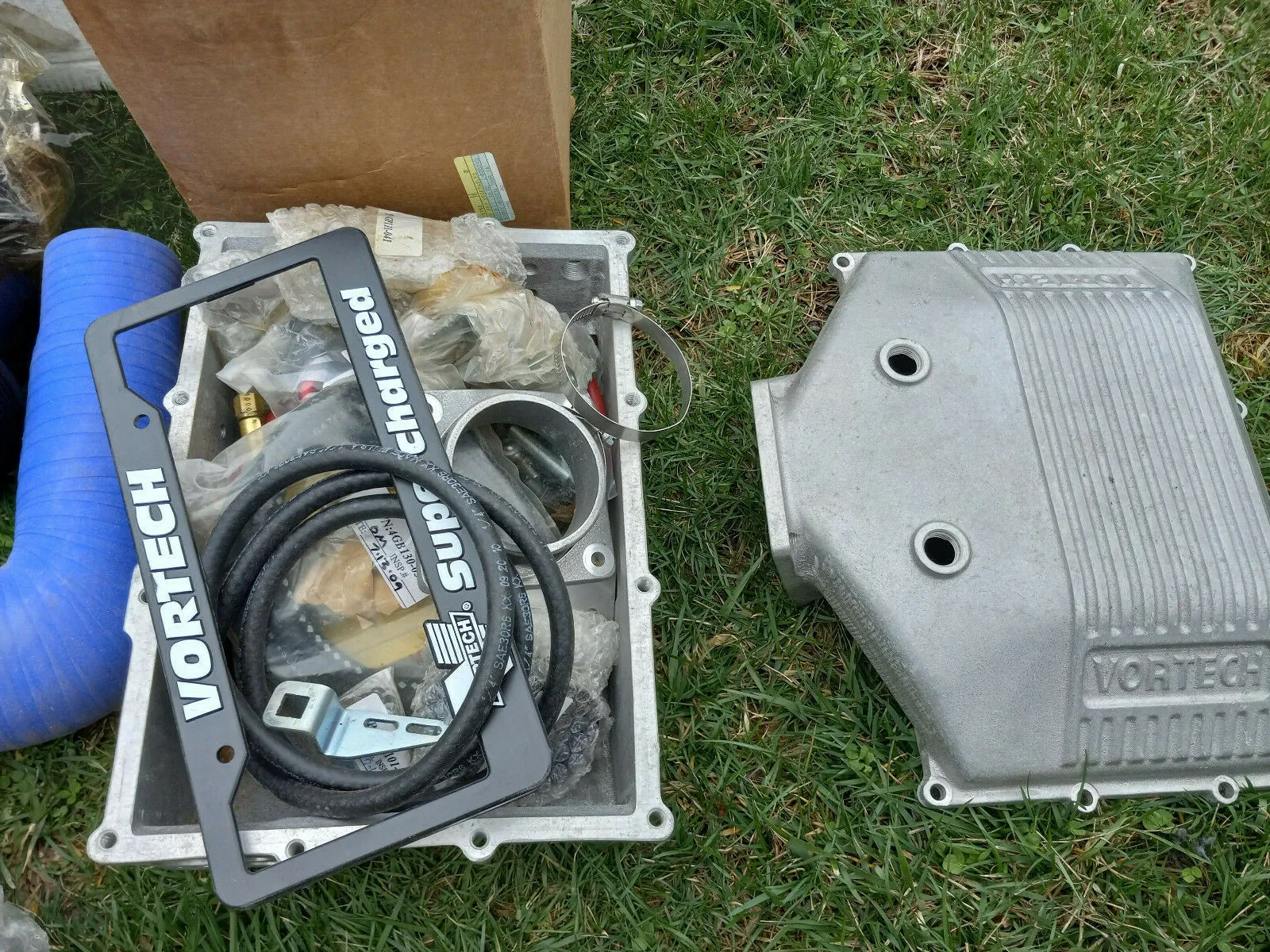

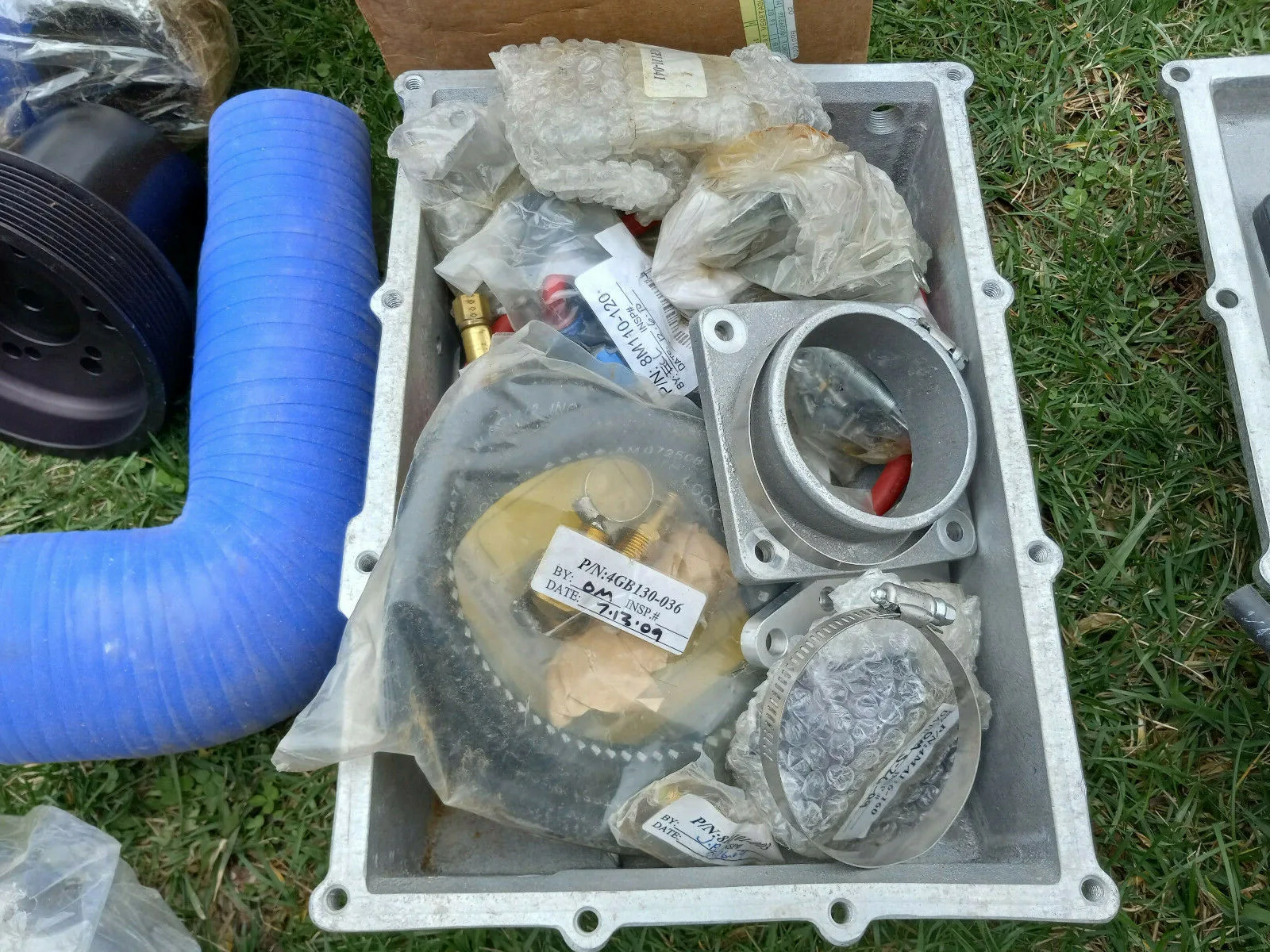

    • Cast aluminum carburetor enclosure assembly for
    use with Holley #4150, Quickfuel Q-750-BAN, or Demon 750 MD carburetor.
    The enclosure pressurizes the float bowls and throttle shafts for
    seamless response. It features front and rear -8 AN fuel inlet ports as
    well as multiple locations for pressure/vacuum connections. Linkage
    arms, splined shaft, and left/right hand spherical rod ends are included
    for simple throttle connection and adjustment. Carburetor studs are
    also supplied.

    • Oil feed and oil drain assemblies deliver the
    best possible lubrication and cooling for the supercharger, even under
    sustained boost conditions.

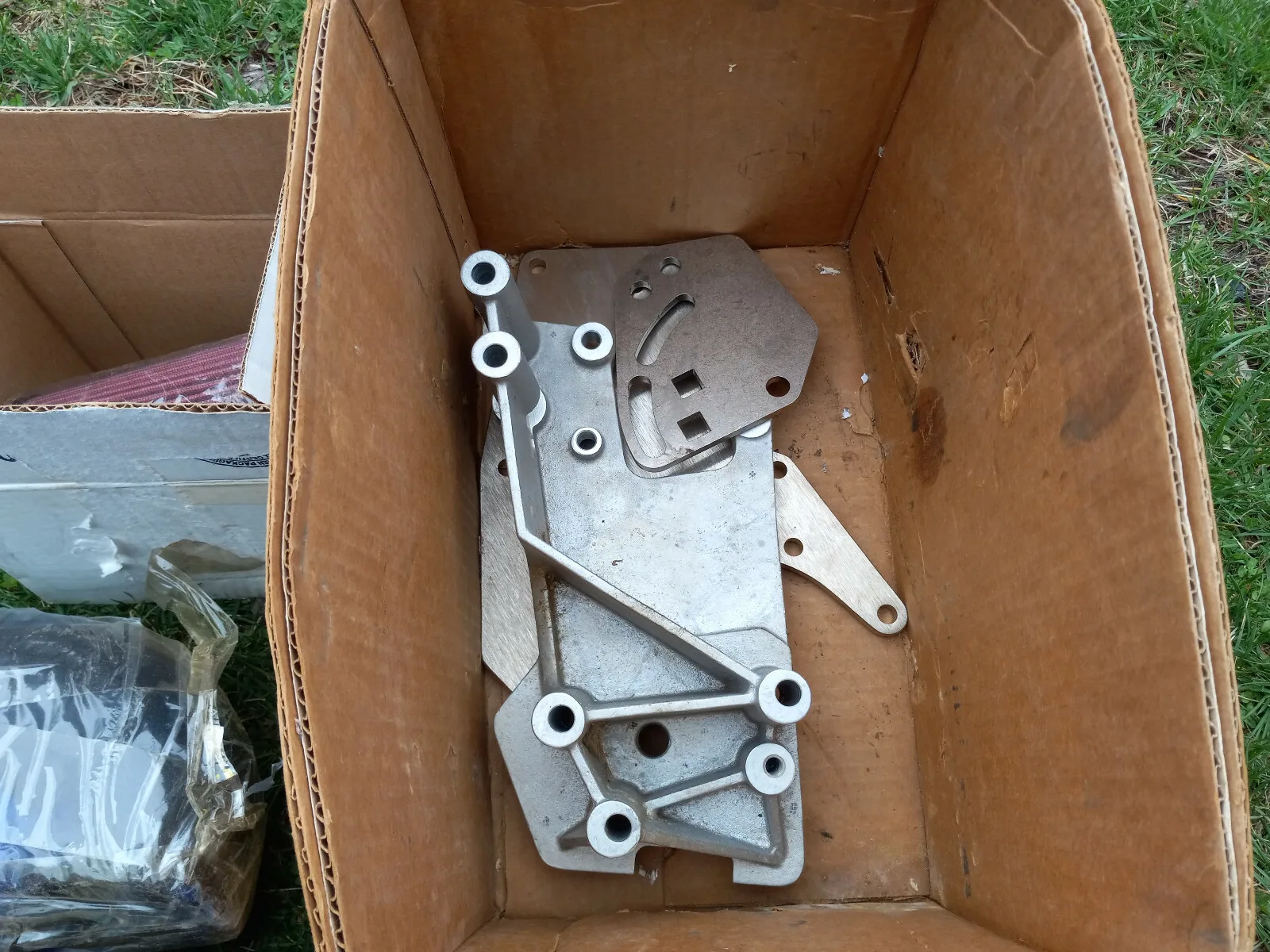

    • Cast aluminum mounting bracketry with all necessary hardware.

    • 3/8″ thick nickel plated steel for rigid supercharger attachment.

    •
    Inlet and discharge duct connection utilize-heat resistant silicon
    sleeves and premium quality stainless steel clamps. 10-rib, 6061-T6
    billet aluminum supercharger crank pulley with hard anodize finish (6″
    diameter) and pulley spacer.

    • Integrated manual belt tensioner assembly with dual bearing tensioner pulley

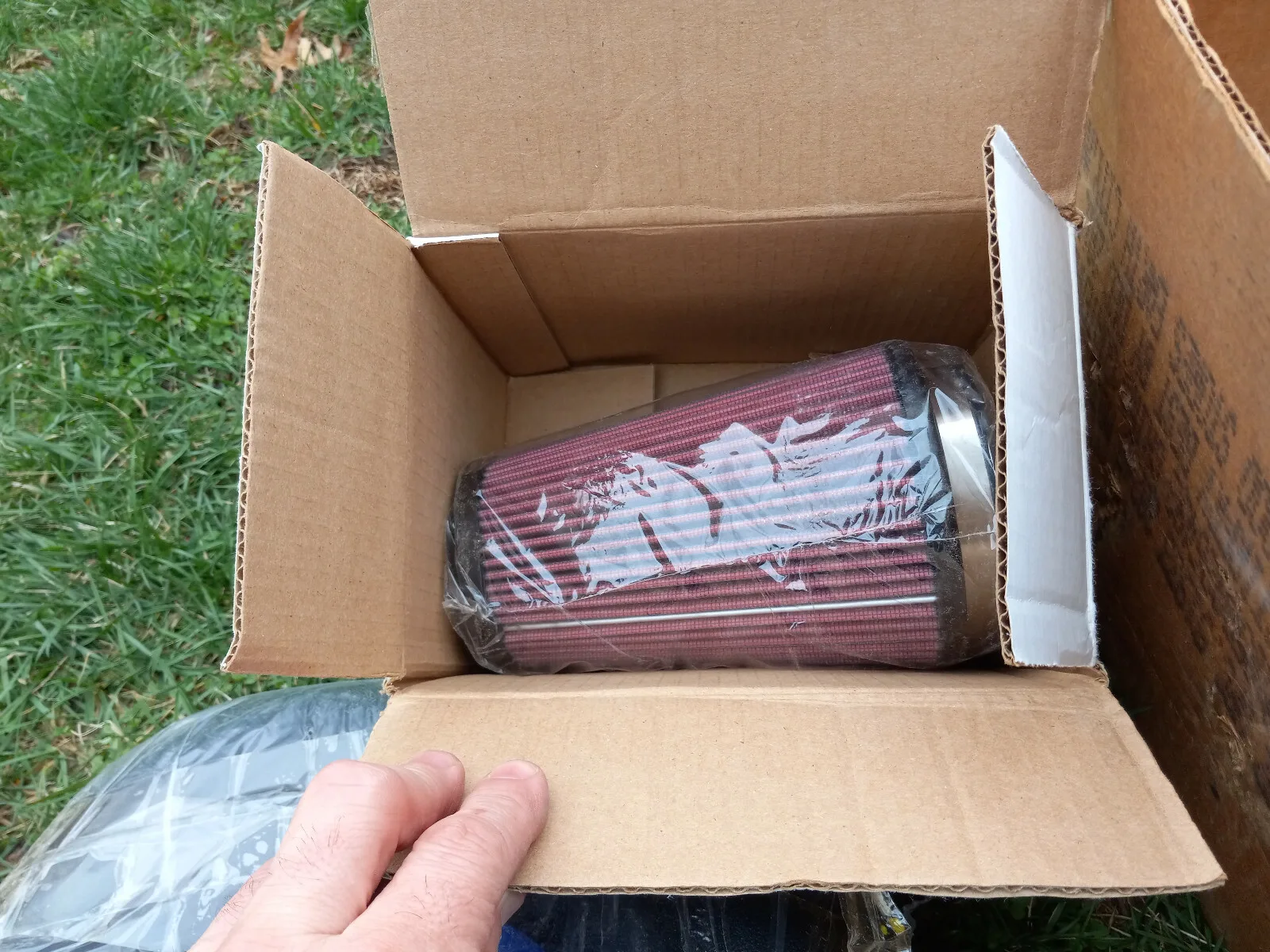

    • High-flow, reusable air filter

    Shipping price is to lower 48 states.

    Shipping insurance : Shipping insurance is highly recommended as I am no longer responsible for items once they are shipped.

    Shipping times : Shipping takes anywhere between 3-12 business days depending on your location and weather.

    Feedback : If you have any issues with your purchase, please contact
    me before leaving neutral or negative feedback. I will try my hardest to
    respond quickly to your problems. I leave feedback when feedback is
    received.

    Items : All items are described to the best of my knowledge but keep
    in mind I’m not an expert in all fields. They are sold as is. No warranty and No
    returns.

    Store Business Hours:



    Our Ebay business hours are Monday- Friday 8:00 A.M. To 4:00 P.M. CST. We process & pull paypal orders Monday – Friday
    at 10 am CST. If you place an order after this time, it will not be
    processed until the following BUSINESS day. We are closed on
    Saturday and Sundays, these are not business days. We use the most
    economical carriers for you depending on the item & your
    location. We have pick ups from our location Monday – Friday
    throughout the day. Tracking numbers are uploaded to eBay on a daily
    basis. Freight tracking numbers are available upon your request.



    ***ALL RETURNS ARE SUBJECT TO A 20% RESTOCKING FEE***

    $4,000.00

    1 in stock
